Neural Networks and Deep Learning - 4 week 실습

데이터 가공이나, 라이브러리 같은 부분 말고 직접적은 코드만 살펴보자

4주차 실습은 사진을 고양이인지 판단하는 모델 제작이다

고양이다

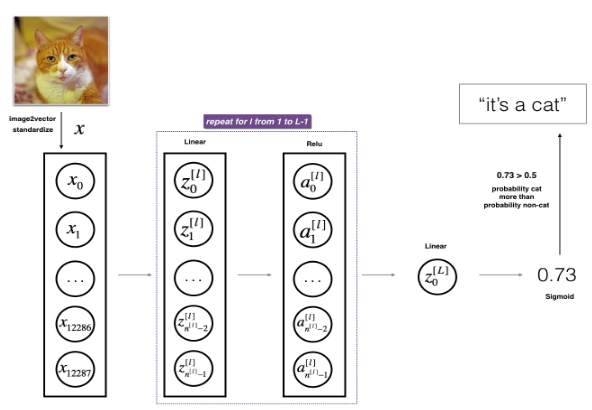

이를 L개의 레이어를 가지는 모델로 구현해보자



먼저 모델을 보며 전체적인 흐름을 살펴보자

def L_layer_model(X, Y, layers_dims, learning_rate = 0.0075, num_iterations = 3000, print_cost=False):
    """
    Arguments:
    X -- data, numpy array of shape (num_px * num_px * 3, number of examples)
    Y -- true "label" vector (containing 0 if cat, 1 if non-cat), of shape (1, number of examples)
    layers_dims -- list containing the input size and each layer size, of length (number of layers + 1).
    learning_rate -- learning rate of the gradient descent update rule
    num_iterations -- number of iterations of the optimization loop
    print_cost -- if True, it prints the cost every 100 steps

    Returns:
    parameters -- parameters learnt by the model. They can then be used to predict.
    """

    #채점과 결과 확인용 코드이다
    np.random.seed(1)
    costs = []
    #---------------------------

    # 변수 초기화
    parameters=initialize_parameters_deep(layers_dims)

    # 경사 하강법으로 parameter 최적화
    for i in range(0, num_iterations):

        # 1. Forward propagation
        # 마지막의 경우 활성 함수로 Sigmoid, 나머지는 렐루 사용함
        AL, caches = L_model_forward(X,parameters)

        # 2. compute cost
        cost=compute_cost(AL,Y)

        # 3. Backward propagation.
        grads=L_model_backward(AL,Y,caches)

        # 4. Update parameters.
        parameters = update_parameters(parameters,grads,learning_rate)

        # 결과 확인용 출력---------------------------------------------------
        if print_cost and i % 100 == 0 or i == num_iterations - 1:
            print("Cost after iteration {}: {}".format(i, np.squeeze(cost)))
        if i % 100 == 0 or i == num_iterations:
            costs.append(cost)
    	#--------------------------------------------------------------------
    return parameters, costs

FP, 비용 계산, BP, parameter 업데이트 4과정을 반복하는 경사하강법을 사용한다

각 함수의 세부 구현을 살펴보자

Forward Propogation

def L_model_forward(X, parameters):
    """
    Arguments:
    X -- data, numpy array of shape (input size, number of examples)
    parameters -- initialize_parameters_deep()으로 초기화된 w,b

    Returns:
    AL -- 시그모이드에 넣은 A[L]
    caches -- list of caches containing:
                every cache of linear_activation_forward() (there are L of them, indexed from 0 to L-1)
    """

    caches = []
    A = X
    #w,b 2개이므로 2로 나누면 레이어 수가 된다
    L = len(parameters) // 2

    #L-1 레이어 까지는 렐루 함수로 FP가 진행된다
    for l in range(1, L):
        A_prev = A
        A,cache=linear_activation_forward(A_prev,parameters['W'+str(l)],parameters['b'+str(l)],activation="relu")
        caches.append(cache)

    #마지막 레이어는 활성 함수로 sigmoid를 이용한다
    AL,cache=linear_activation_forward(A,parameters['W'+str(L)],parameters['b'+str(L)],activation="sigmoid")
    caches.append(cache)

    return AL, caches



def linear_activation_forward(A_prev, W, b, activation):
    """
    활성 함수에 따른 계산을 한다
    Arguments:
    A_prev -- activations from previous layer (or input data): (size of previous layer, number of examples)
    W -- weights matrix: numpy array of shape (size of current layer, size of previous layer)
    b -- bias vector, numpy array of shape (size of the current layer, 1)
    activation -- the activation to be used in this layer, stored as a text string: "sigmoid" or "relu"

    Returns:
    A -- the output of the activation function, also called the post-activation value
    cache -- a python tuple containing "linear_cache" and "activation_cache";
             stored for computing the backward pass efficiently
    """

    if activation == "sigmoid":
        Z, linear_cache = linear_forward(A_prev,W,b)
        A,activation_cache = sigmoid(Z)
    elif activation == "relu":
        Z, linear_cache = linear_forward(A_prev,W,b)
        A,activation_cache = relu(Z)

    cache = (linear_cache, activation_cache)

    return A, cache

def linear_forward(A, W, b):
    """
    하나의 레이어에서 FP를 계싼한다
    Arguments:
    A -- activations from previous layer (or input data): (size of previous layer, number of examples)
    W -- weights matrix: numpy array of shape (size of current layer, size of previous layer)
    b -- bias vector, numpy array of shape (size of the current layer, 1)

    Returns:
    Z -- the input of the activation function, also called pre-activation parameter
    cache -- a python tuple containing "A", "W" and "b" ; stored for computing the backward pass efficiently
    """
    Z=np.dot(W,A)+b
    cache = (A, W, b)

    return Z, cache

Compute Cost

이진 분류이기에 아래 식을 사용하였다

def compute_cost(AL, Y):
    """
    Arguments:
    AL -- probability vector corresponding to your label predictions, shape (1, number of examples)
    Y -- true "label" vector (for example: containing 0 if non-cat, 1 if cat), shape (1, number of examples)

    Returns:
    cost -- cross-entropy cost
    """

    m = Y.shape[1]

    cost=-np.sum(Y*np.log(AL)+(1-Y)*np.log(1-AL))/m
    #numpy 실수로 변환
    #[[17]] -> 17 느낌
    cost = np.squeeze(cost)

    return cost

Backward Propogation

def L_model_backward(AL, Y, caches):
    """
    Arguments:
    AL -- probability vector, output of the forward propagation (L_model_forward())
    Y -- true "label" vector (containing 0 if non-cat, 1 if cat)
    caches -- list of caches containing:
                every cache of linear_activation_forward() with "relu" (it's caches[l], for l in range(L-1) i.e l = 0...L-2)
                the cache of linear_activation_forward() with "sigmoid" (it's caches[L-1])

    Returns:
    grads -- A dictionary with the gradients
             grads["dA" + str(l)] = ...
             grads["dW" + str(l)] = ...
             grads["db" + str(l)] = ...
    """
    grads = {}
    L = len(caches) # the number of layers
    m = AL.shape[1]
    Y = Y.reshape(AL.shape) # after this line, Y is the same shape as AL

    # loss함수를 미분한 값이다
    # 위의 loss를 미분 해 보면 구할 수 있다
    dAL=-(np.divide(Y,AL)-np.divide(1-Y,1-AL))

    #마지막 레이어엔 sigmoid를 사용하였으니 따로 계산해 준다
    current_cache=caches[L-1]
    grads["dA"+str(L-1)],grads["dW"+str(L)],grads["db"+str(L)]\=
    	linear_activation_backward(dAL,current_cache,activation="sigmoid")

    # 나머지는 렐루를 경사하강 시켜준다
    for l in reversed(range(L-1)):
        current_cache=caches[l]
        grads["dA"+str(l)],grads["dW"+str(l+1)],grads["db"+str(l+1)]\=
        	linear_activation_backward(grads["dA"+str(l+1)],current_cache,activation="relu")

    return grads

def linear_activation_backward(dA, cache, activation):
    """
    활성함수에 따른 BP를 계산해 준다
    Arguments:
    dA -- post-activation gradient for current layer l
    cache -- tuple of values (linear_cache, activation_cache) we store for computing backward propagation efficiently
    activation -- the activation to be used in this layer, stored as a text string: "sigmoid" or "relu"

    Returns:
    dA_prev -- Gradient of the cost with respect to the activation (of the previous layer l-1), same shape as A_prev
    dW -- Gradient of the cost with respect to W (current layer l), same shape as W
    db -- Gradient of the cost with respect to b (current layer l), same shape as b
    """
    linear_cache, activation_cache = cache

    #dz=da*g'(z)이므로 활성함수에 따라 다르다
    if activation == "relu":
        dZ=relu_backward(dA,activation_cache)
        dA_prev,dW,db=linear_backward(dZ,linear_cache)

    elif activation == "sigmoid":
        dZ=sigmoid_backward(dA,activation_cache)
        dA_prev,dW,db=linear_backward(dZ,linear_cache)

    return dA_prev, dW, db

def linear_backward(dZ, cache):
    """
    단일레이어 BP를 계산해 준다
    Arguments:
    dZ -- Gradient of the cost with respect to the linear output (of current layer l)
    cache -- tuple of values (A_prev, W, b) coming from the forward propagation in the current layer

    Returns:
    dA_prev -- Gradient of the cost with respect to the activation (of the previous layer l-1), same shape as A_prev
    dW -- Gradient of the cost with respect to W (current layer l), same shape as W
    db -- Gradient of the cost with respect to b (current layer l), same shape as b
    """
    A_prev, W, b = cache
    m = A_prev.shape[1]

    #앞서 미분으로 왜 이런 식이 나오는지 배웠다
    dW=np.dot(dZ,A_prev.T)/m
    db=np.sum(dZ,axis=1,keepdims=True)/m
    dA_prev=np.dot(W.T,dZ)

    return dA_prev, dW, db

Update parameters

def update_parameters(params, grads, learning_rate):
    """
    경사하강의 결과를 parameter에 적용해 준다
    Arguments:
    params -- python dictionary containing your parameters
    grads -- python dictionary containing your gradients, output of L_model_backward

    Returns:
    parameters -- python dictionary containing your updated parameters
                  parameters["W" + str(l)] = ...
                  parameters["b" + str(l)] = ...
    """
    parameters = params.copy()
    L = len(parameters)

    for l in range(L):
        parameters["W" + str(l+1)]=parameters["W" + str(l+1)]-learning_rate*grads["dW"+str(l+1)]
        parameters["b" + str(l+1)]=parameters["b" + str(l+1)]-learning_rate*grads["db"+str(l+1)]

   return parameters
